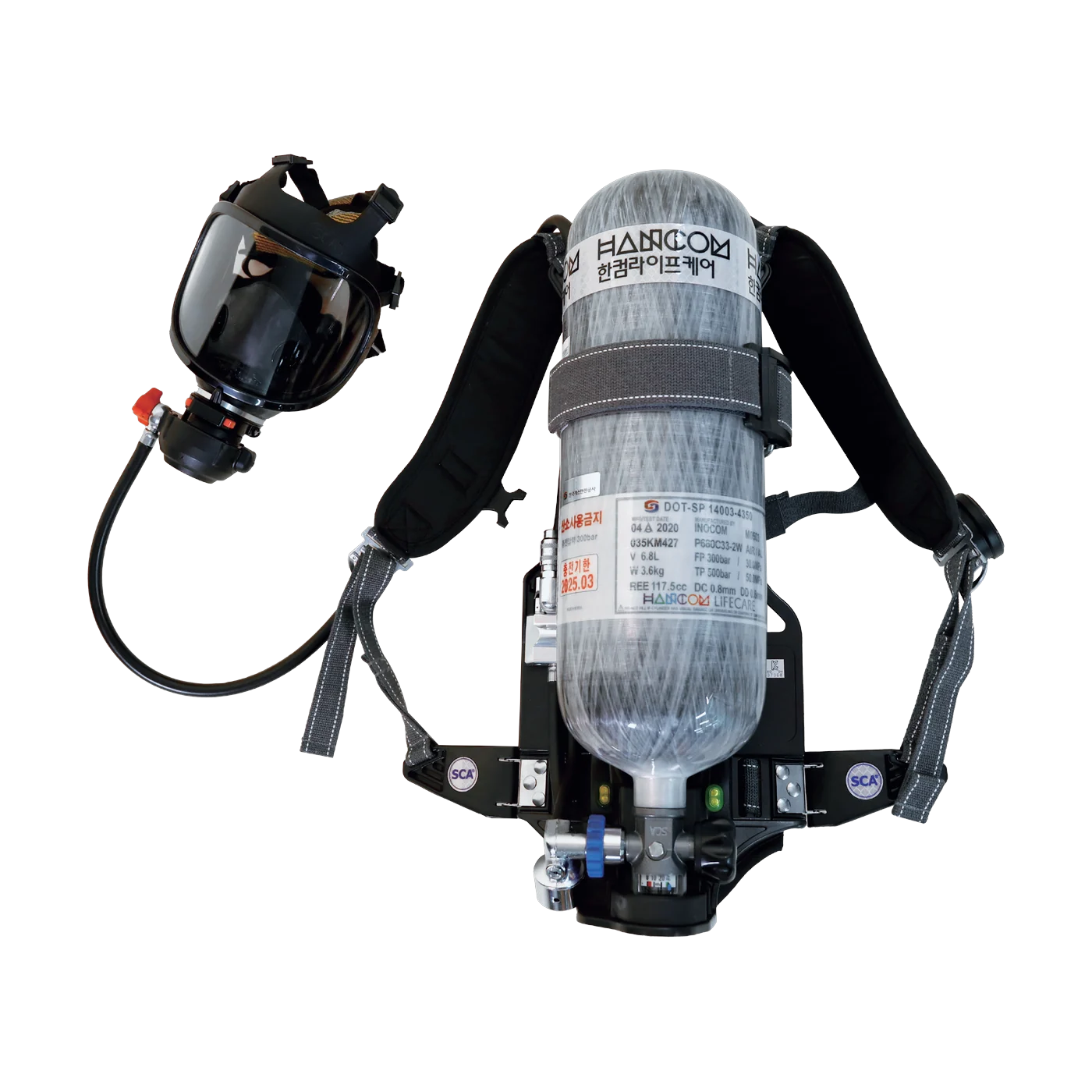

Self-Contained Breathing Apparatus
Essential-function SCBA — easy to operate and maintain, 45 and 60 minutes.
Engineered for both simplicity and reliability, this SCBA is ideal for firefighting and industrial applications. It focuses on essential functions to guarantee easy operation and maintenance without compromising safety.
Ideal for buildings, large complexes, companies and industrial environments, it serves as a critical safety solution.
First Breathing Open (FBO) — opens with the first breath after the face-piece is put on.
Locates the wearer and guides evacuees — green in use, red at low residual pressure.
Check cylinder residual pressure without opening the valve.
Photoluminescent panel for easy reading in the dark.
Evacuation alarm at approx. 75 bar (90 dB whistle until 10 bar).
Reduces cylinder air to approx. 8 bar for the demand valve.
| Model | SCA 680 | SCA 790 |
|---|---|---|
| Service time (at 40 L/min) | Approx. 45 min | Approx. 60 min |
| Fill gas | Air | Air |
| Total weight (excl. auxiliary mask, battery, air) | 9 kg or less | 11 kg or less |
| Certification | Korea Fire Institute (KFI) | Korea Fire Institute (KFI) |
| Cylinder volume | 6.8 L | 9.0 L |
| Cylinder liner | Fully wrapped composite | Fully wrapped composite |
| Max. air capacity | Approx. 2,040 L | Approx. 2,790 L |
| Cylinder weight (excl. air & valve) | Approx. 3.6 kg | Approx. 5.0 kg |
| Test pressure | Approx. 300 bar | Approx. 310 bar |
| Cylinder certification | KGS, D.O.T. | KGS, D.O.T. |
Specifications are subject to change without prior notice for product performance improvement.
